Conical buttons

Product Description

Everything Your Business Needs is Right Here.

Spherical teeth: this series of buttons and drill bits are matched with DTH hammers, which can be used for drilling on rocks and applied to drilling rock anchor cable holes, bolt holes, grouting holes and other drilling construction in projects of urban construction, railway, highway, riverway, hydropower and others.

Parameter

Inch

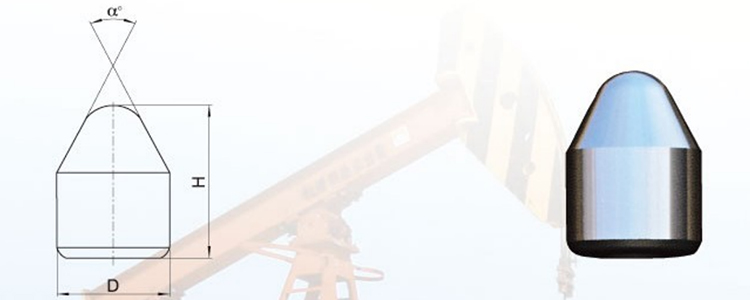

Type	Basic dimensions(mm)
Type	D	H	a°
RZ0812	8.25	12.20	58
RZ1016	10.25	16.30	58
RZ1424	14.38	24.00	55
RZ1625	16.30	25.00	45

please contact us

Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.

Application

Reeke is a comprehensive high-tech enterprise of carbide products of tungsten, cobalt,titanium and zirconium that integrates R&D, production, sales and service.

Machining

Mining

Construction/Tunneling

Oil & Gas

Main Features

High-Purity Materials

To gain high strength carbide, we exclusively select high purity raw materials.

State-of-the-art Production Process

State-of-the-art and mature PEG production process.

Solid Quality

HIP sintering for higher TRS; 100% inspection before shipping.

Customized production

Fast production as per drawings or samples, Responsive customer service.
