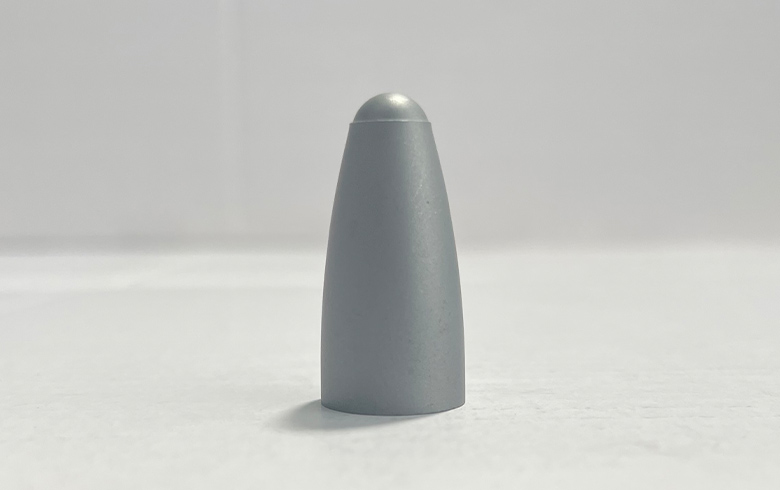

F-Tree with radius end

Product Description

Everything Your Business Needs is Right Here.

Carbide burr blanks can be processed to rotary burrs mainly aiming at machine manufacturing industry, including the manufacture of ship, automobile, aerospace and high-speed train, casting in military industry. titanium-aluminum alloy processing etc. extending to dentistry and carving gradually.

Parameter

Inch

Metric

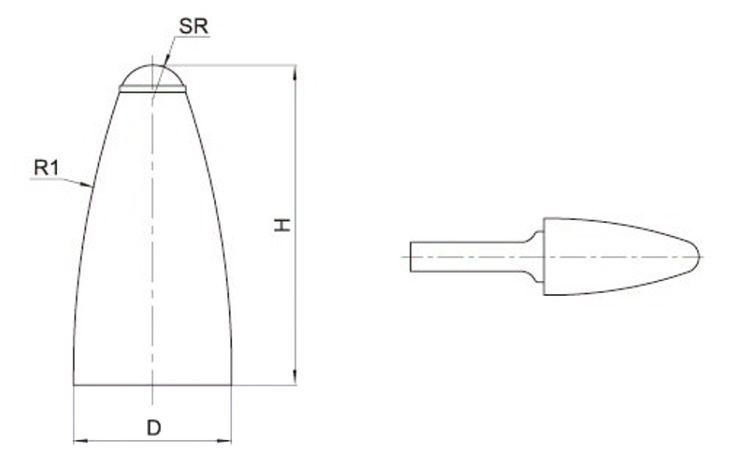

Blank Designation	D		H		R1	SR
Blank Designation	Normal	Actual	Normal	Actual	R1	SR
BSF-51	1/4	0.265	1/2	0.500	1.630	0.068
BSF-3	3/8	0.390	3/4	0.750	2.300	0.098
BSF-4	7/16	0.453	1	1.000	3.255	0.098
BSF-13	1/2	0.515	3/4	0.750	1.760	0.130
BSF-5	1/2	0.515	1	1.000	3.255	0.130
BSF-6	5/8	0.640	1	1.000	3.055	0.194
BSF-7	3/4	0.767	1	1.000	2.130	0.194
BSF-14	3/4	0.767	1 1/4	1.250	3.319	0.194
BSF-15	3/4	0.767	1 1/2	1.500	5.069	0.194

Type	Basic dimensions (mm)
Type	D	H	R1	SR
F0413	4.5	13.3	35	1
F0613	6.5	13.3	43	1.4
F0818	8.5	18.3	50	2
F1020	10.5	20.3	60	2.5
F1225	12.5	25.3	65	2.5
F1230	12.5	30.3	70	2 .7
F1630	16.5	30.3	70	3.6
F2030	20.5	30.3	90	5

please contact us

Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.

Application

Reeke is a comprehensive high-tech enterprise of carbide products of tungsten, cobalt,titanium and zirconium that integrates R&D, production, sales and service.

Oil & Gas

Main Features

Full Sizes

From shape A to shape N, both Metric and English sizes are available.

Fast Delivery

Burr blanks always shipped from stock, Responsive customer service.

Grade YG7

YG7 grade for silver and copper brazing. Other grade available on request.

Solid Quality

Enjoy locally sourced reliable materials; HIP sintering for higher TRS.
